Hummer Ti (Cross Country)
Get FREE Shipping and a FREE Pair of FIVE TEN shoes with the purchase of this Cove Bike - a $200+ value!

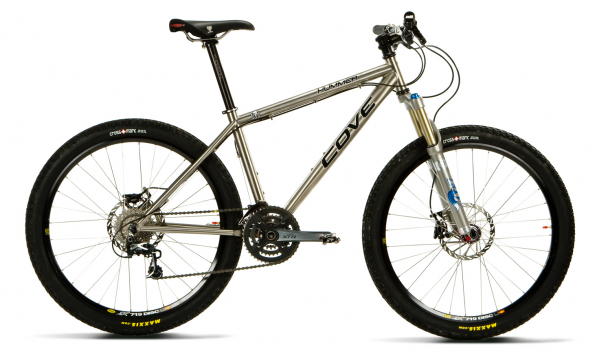

Cove Bikes first born but aged to perfection after 20 years, this is a perfectly crafted titanium bike born from Shore old school singletrack. Made by Lynskey Performance Designs, the Hummer incorporates big tire clearance and the ability to take longer travel forks, this is the classic ride. Pound it through technical XC racecourses or hammer over a mountain range, if it has the Cove name on it, it can take it.
Technical Note
- XC
- 3 AL/2.5V Aerospace titanium
- Machined socket styple dropouts with replacable deraileur hanger
- Bottle opener brake mount
- 2.4" tire clearance
- Engraved headtube badge
Colors
Geometry and Specs
| Size | Top Tube (horizontal) | Tope Tube (actual) | Chain Stay | BB Height | Seat Angle | Seat Tube | Head Angle | Head Tube | Wheel Base | Stand Over | Max. Fork Travel | | 16" | 22" | 21" | 16.75" | 12.6 | 72.5 | 16" | 68.5 | 4.2" | 41.75" | 29" | * | | 17" | 22.5" | 21.45" | 16.75" | 12.6 | 72.5 | 17" | 68.5 | 4.5" | 42.25" | 29.8" | * | | 18" | 23" | 22" | 16.75" | 12.6 | 72.5 | 18" | 68.5 | 4.88" | 42.8" | 30.25" | * | | 19" | 23.5" | 22.5" | 16.75" | 12.6 | 72.5 | 19" | 68.5 | 5.2" | 43.3" | 31" | * | | 20" | 24" | 23" | 16.75" | 12.6 | 72.5 | 20" | 68.5 | 5.38" | 44" | 32.12" | * | |
* 200 Max Ride Height of 570mm.
Frame Components and Specs
| Front Derailleur | Seat Post | Seat Collar | Chain Line / Chain Guide | Chain Line (no guide) | SS Shell | Head Set | | NA | 30mm | 34.9mm | 56mm | NA | 83mm | 1.125" | |
Shocks Specs
| Shock Length | Stroke | Rear Pin | Front Pin | Leverage/Travel |
| 9.5" | 3" | 8mm x 42mm | 8mm x 33mm | 2.94:1/8.825" |
Cove Hummer XC Bike Build Kit Options
- Bling
- Fork Rockshox Recon 351 Air 9mm
Headset FSA Orbit
Stem Truvativ Team
Handbars Truvativ Stylo WC
Shifter SRAM X.0
Brakes Avid Elixir Carbon CR 185mm
Grips Lock-on
Seatpost Truvativ Team
Saddle Cove WTB Rocket
Cranks Truvativ Stylo OCT
Front Der. SRAM X-Gen
Rear Der. SRAM X.0
Chain SRAM 951
CassetteSRAM 990 11-32
Front Hub Ringle 9mm
Front Rim Mavic 719
Front Tire Maxxis Crossmark
Rear Hub Shimano XT
Rear Rim Mavic 719
Rear Tire Maxxis Crossmark
Kit Price $2616 | - DND
- Fork Rockshox Recon 351 U-turn
Headset FSA Pig
Stem Truvativ Stylo Race
Handbars Truvativ Stylo Team
Shifter SRAM X.9
Brakes Avid Elixer R 185mm
Grips Lock-on
Seatpost Truvativ Stylo Race
Saddle Cove WTB Rocket
Cranks Truvativ Stylo 3.3
Guide ----------------
Front Der. SRAM X-Gen
Rear Der. SRAM X.9
Chain SRAM 951
Cassette SRAM 990 11-34
Front Hub Shimano Deore 9mm
Front Rim Sun-Ringle Singletrack
Front Tire Maxxis Minion 2.35
Rear HubShimano Deore
Rear Rim Sun-Ringle Singletrack
Rear TireMaxxis Minion 2.35
Kit Price $1488 |
